Mesh Wireless Gateway

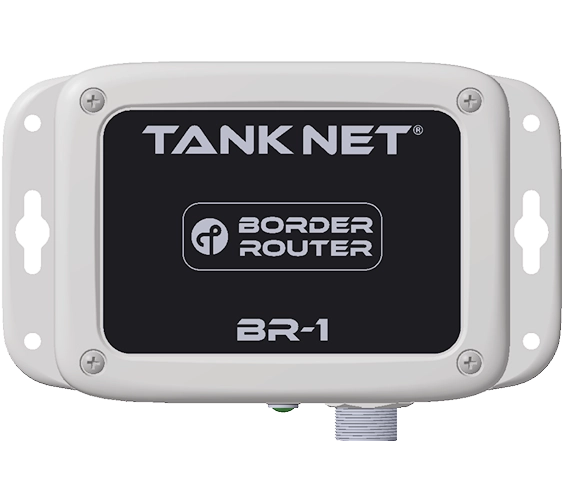

The TankNET® BR-1 is a hardened Thread Border Router designed to connect TankNET® wireless mesh controllers to Ethernet/IP networks and cloud services.
Key Applications:
- Secure wireless controller gateway for TankNET® fermentation management systems
- Easy expansion of TankNET® into new or retrofit facilities
- Enable non-disruptive expansion alongside legacy power line infrastructure
Key Features & IT Security
Built for challenging industrial environments with enterprise-grade security
Key Features
Seamless Thread-to-IP Bridging
Bridges 802.15.4-based Thread mesh controllers with Ethernet networks for real-time control and monitoring.
PoE-Powered
Single-cable installation using 802.3af Power over Ethernet - no external power supply required.
IP-68 Rated Housing
Fully sealed, waterproof, and dust proof enclosure for harsh cellar and outdoor installations.

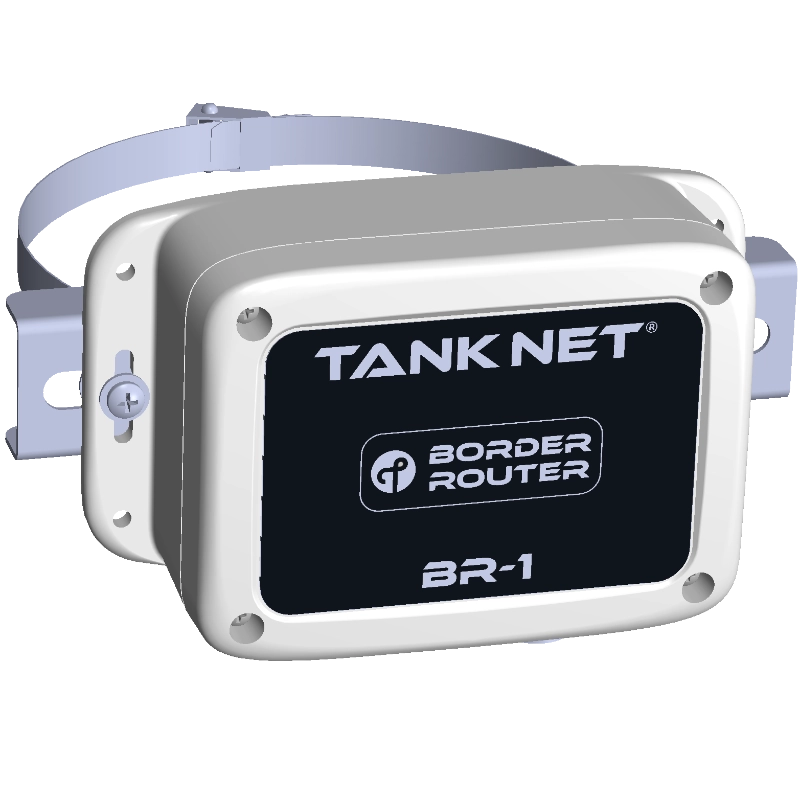

Pole-Mountable
Optional stainless mounting bracket for pipe diameters from ¾" to 1¼".

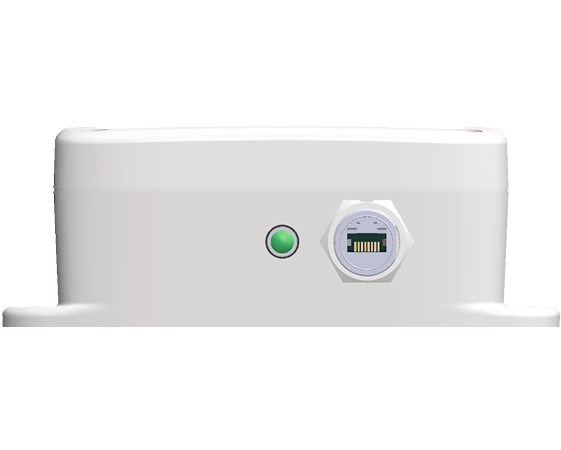

Industrial-Grade RJ-45 Port
Features IP-68 rated Amphenol field-attachable Ethernet connector for reliable, sealed connection.
Bi-Color Status LED
At-a-glance diagnostics for power, connectivity, and mesh health.
IT Security Highlights
Encrypted Mesh Communications
Uses AES-128 encryption per the Thread standard for all wireless traffic.
Outbound-Only IP Access
Publishes telemetry using outbound MQTT/CoAP, no inbound ports or firewall exceptions needed.
No Data Storage or Control Logic
Stateless forwarding of mesh data; no user data, credentials, or logic stored or executed.
Hardened Firmware
Runs dedicated application with digitally signed firmware and no general-purpose OS services.
Network Isolation
Ensures strict separation between wireless mesh and Ethernet/IP infrastructure.
Product Datasheet
Download Datasheet (opens in a new tab)Specifications
| Parameter | Specification |
|---|---|
| Model | BR-1 |
| Power | IEEE 802.3af PoE (48V) |
| Dimensions | 140mm x 90mm x 50mm 5.5" x 3.5" x 2.0" |
| Enclosure | IP-68 rated polycarbonate |
| Indicators | Bi-color LED (green/red) |
| Temperature | -20°C to +60°C |
| Connectors | IP-68 rated RJ-45 (Amphenol RCP series) |
| Network interfaces | Thread: IEEE 802.15.4; 10/100 Mbps LAN |
| Mounting | Stainless pole clamp (2"-12" diameter) |
* Specifications subject to change without notice
