BT-1

BT-1

Streamlined, Affordable Temperature Control

IP-67 Rated Heat/Cool/Auto WiFi 6/Mesh
Get a Quote Datasheet
BT-1 mounted on a wine tank, with its temperature on a smartwatch
Tank Mounted Controller

Mobile-First Thermostat

Compact wireless temperature controller enabled with Bluetooth + Mesh and Wi-Fi 6 for seamless connectivity.

Key Applications:

  • Cost-Effective Tank Temperature Control
  • For Wine, Beer, Sake, and Kombucha
  • Remote Access From Anywhere
  • Starting Small, Building for Growth
Request Pricing

Key Features

Precise Heating and Cooling

Jump starts fermentation with gentle heat, then seamlessly transitions to free-rise

Two Temperature Inputs

Monitor temperatures at up to two locations.

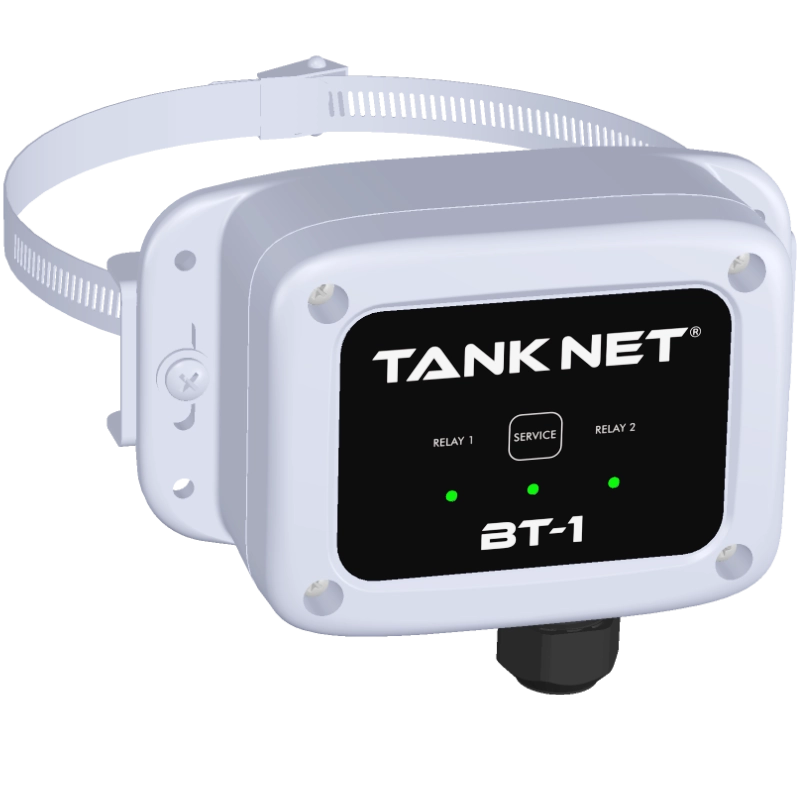

Flexible Mounting Options

Mounts to ice shield (standard) or to tank leg via stainless steel pole mounting option

Mobile-First Design

Optimized for use with the TankNET® mobile app or smartwatch.

IP-67 Rated Enclosure

Fully sealed, water-tight, and dust proof enclosure for harsh cellar and outdoor environments.

Wi-Fi 6 or Mesh Networking

Robust and cost effective wireless integration with TankNET® Apps & Software.

Overview

The BT-1 brings industrial-grade temperature control to every tank in an ultra-affordable, display-free form. Designed for users who want to monitor and manage their tanks from anywhere, it offers full heating, cooling, pulse-cooling, and Auto-mode functionality.

Built-in Bluetooth provides direct, local access from a smartphone or a smartwatch, ideal for installations without TankNET® software or when the network is unavailable. With dual-mode Wi-Fi 6 and Mesh connectivity, the BT-1 integrates effortlessly into any TankNET® system, making reliable, remote management simple, scalable, and accessible to every cellar.

Why Choose it

  • Lower cost
    same accuracy, no display
  • Mobile-first
    full control from phone or watch
  • Wi-Fi 6 / Bluetooth
    quick setup, no wiring required
Book a demo

Product Datasheet

Download Datasheet

Specifications

Parameter Specification
Model BT-1
Operating temperature -10 to 45 °C
Safety rating ETL Listed Pending
Input voltage 120VAC 50/60Hz at 0.1A
24VAC 50/60Hz at 0.3A
Enclosure Polycarbonate, UL50, NEMA-4X Rated
Dimensions (with brackets) 115mm x 90mm x 57mm
4.5" x 3.5" x 2.2"
Cool relay Form-C, Fused @ 2A at 120VAC
Heat relay Form-C, Fused @ 2A at 120VAC
Probe input 1 Temperature Probe (3-Wire)
Probe input 2 Temperature Probe / 4-20mA Sensor
Designed to scale with the TankNET ecosystem

* Specifications subject to change without notice
