The industry standard for dependable temperature control, built to withstand harsh cellar environments.

IP-67 Rated Heat/Cool Modes WiFi/Mesh
Get a Quote Datasheet
Tank Mounted Controller

Wireless Thermostat

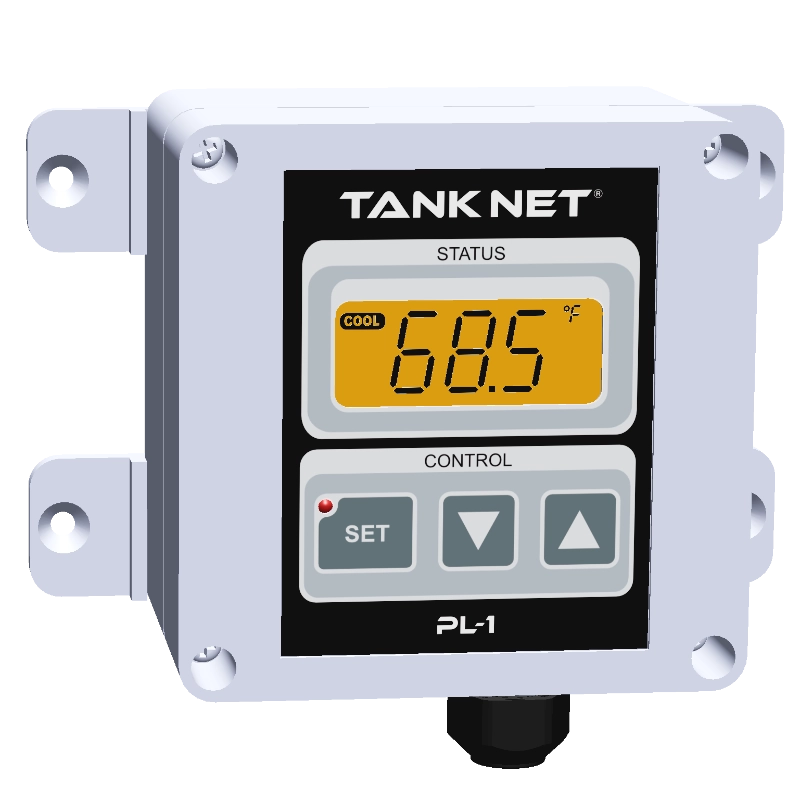

The TankNET® PL-1 is an economical, rugged thermostat designed for precise temperature control in wineries and breweries.

Key Applications:

  • Precise Tank Temperature Control
  • Wine, Beer, Sake, Cider, Kombucha
  • TankNET® Software
Request Pricing

Key Features

Precise Heating and Cooling

Jump starts fermentation with gentle heat, then seamlessly transitions to free-rise.

Two Temperature Inputs

Monitor temperatures at up to two locations.

Flexible Mounting Options

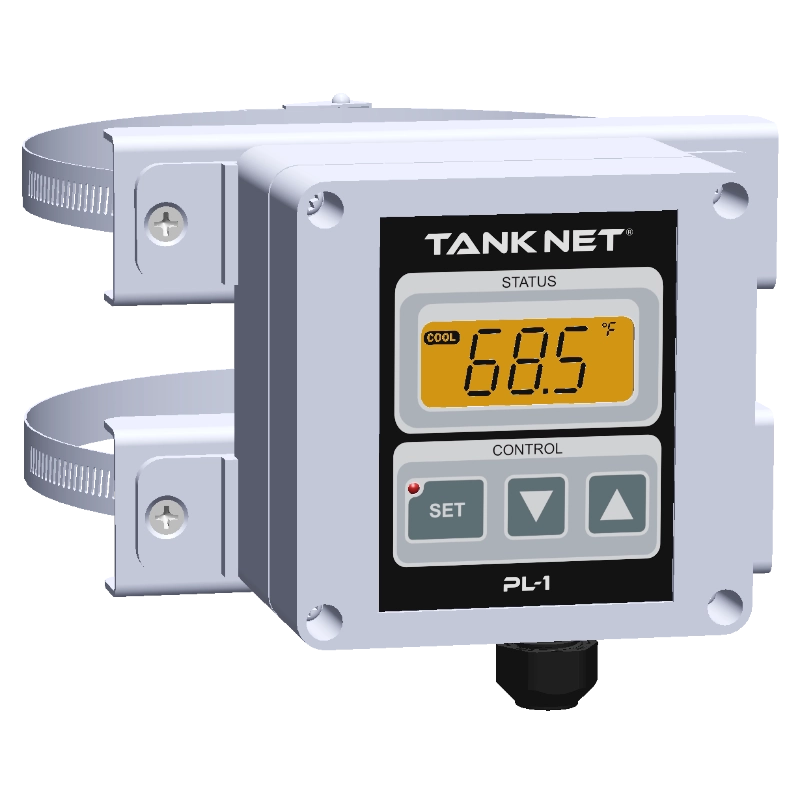

Mounts to ice shield (standard) or to tank leg via stainless steel pole mounting option

Real-Time Brix Integration

Works with Acrolon's brix monitoring solution for actionable, real-time fermentation insights

IP-67 Rated Enclosure

Fully sealed, water-tight, and dust proof enclosure for harsh cellar and outdoor environments.

Wi-Fi 6 or Mesh Networking

Robust and cost effective wireless integration with TankNET® software.

Overview

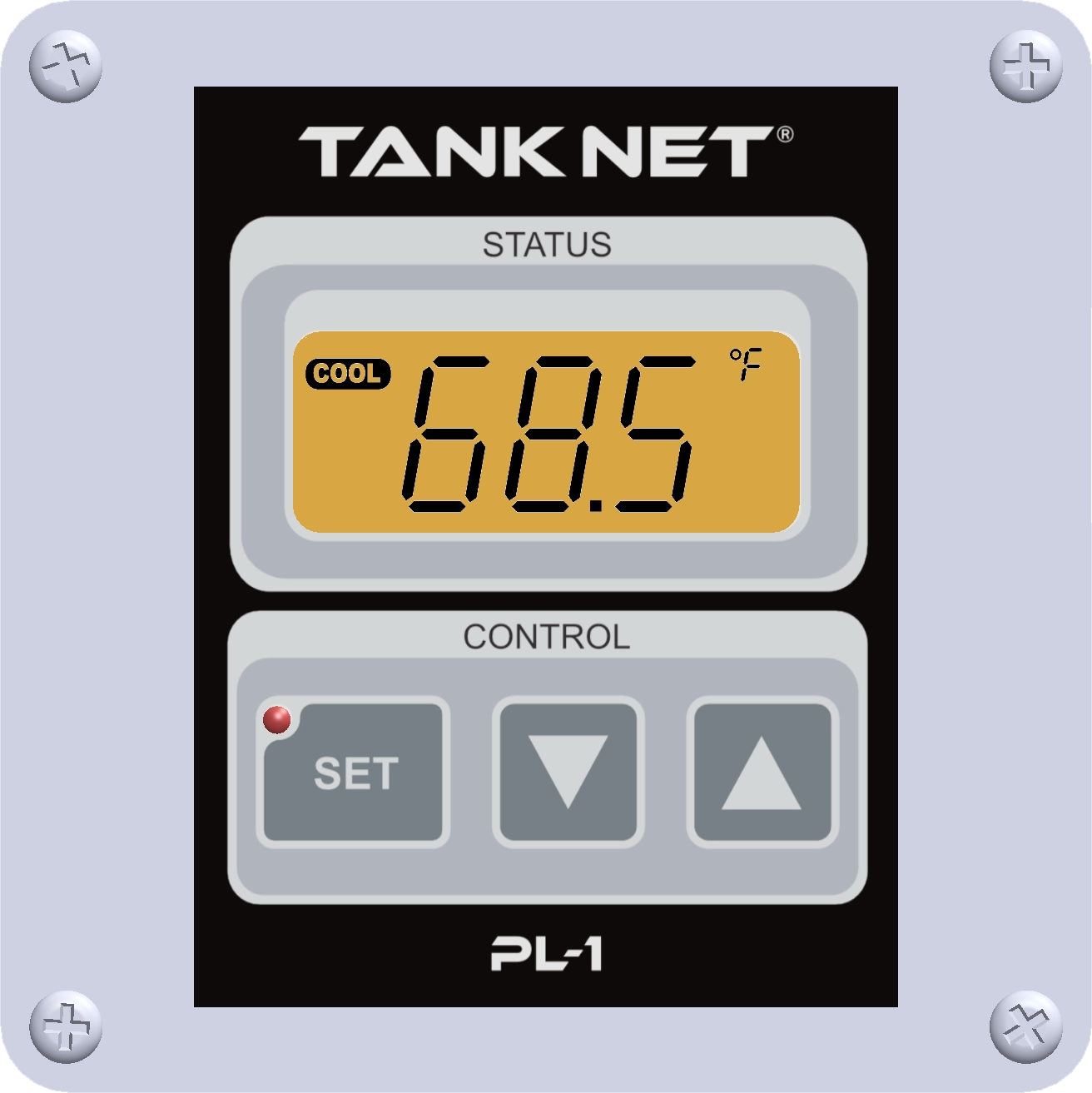

The PL-1 is the dependable choice for precise, everyday tank temperature control. Featuring a bright local display and tactile buttons, it allows quick tankside adjustments and clear visual feedback.

Designed for simplicity and reliability, it provides full heating, cooling, pulse-cooling, and Auto-mode operation while integrating seamlessly into the TankNET® Ecosystem.

The PL-1 combines hands-on control with full remote management for a smooth balance of simplicity and capability - trusted by winemakers and brewers worldwide.

Why Choose it

  • Built for harsh cellar conditions
  • Low-cost, fast deployment
  • Flexible mounting options

Product Datasheet

Download Datasheet

Specifications

Model

PL-1

Operating Temp.

-10°C to 45°C

Safety Rating

ETL Listed

Input Voltage

120VAC 50/60Hz at 0.10A

24VAC 50/60Hz at 0.30A

Enclosure

Polycarbonate, UL50, NEMA-4X Rated

Dimensions (with brackets)

144mm x 100mm x 75mm

5.7" x 3.9" x 2.9"

Relay Output

  • Cool Relay: Form-C, Fused @ 2A at 120VAC
  • Heat Relay: Form-C, Fused @ 2A at 120VAC

Probes

  • Input 1: Two-wire temperature probe
  • Input 2: Temperature Probe / 4-20mA Sensor
ETL Listed

* Specifications subject to change without notice
